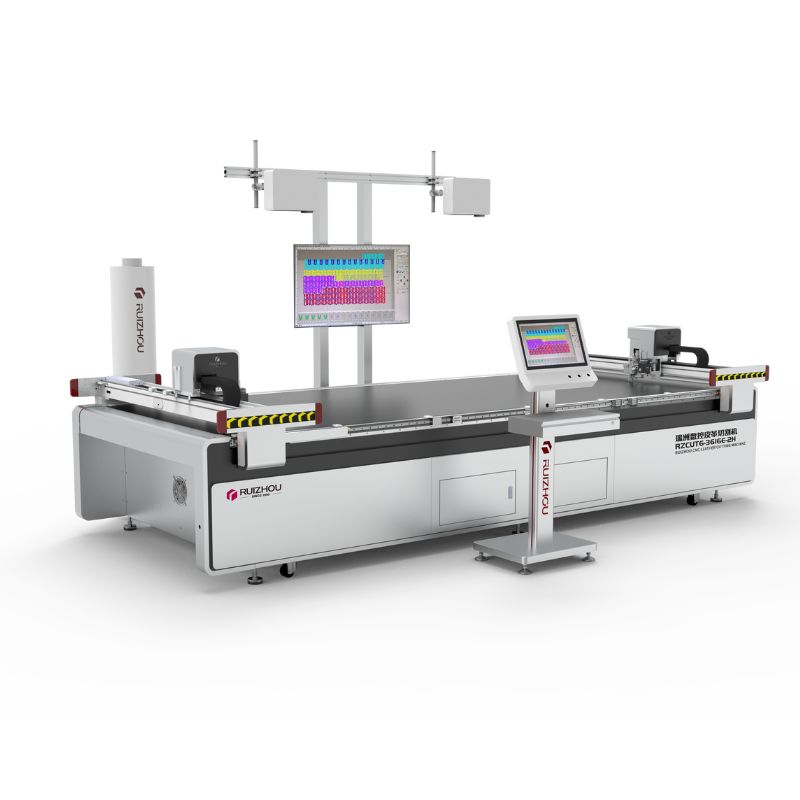

Model | RZCUT5-3616E-2H |
Effective Working Area | (L)3600mm*(W)1600mm |
Machine Dimension | (L)4860mm*(W)2210mm |
Cutting Speed | 1-1200mm/s |
Cutting Thickness | 0.1-6mm |
Processing Material | Genuine leather, synthetic leather,cow leather,sheep leather, pigskin leather,crocodile leather, etc. |
Leather Nesting | Standard manual leather nesting & cutting control system can support live nesting on leather surface, avoiding the defect area. (Can be upgraded to advance automatic nesting system) |
Hold Method | Vacuum absorption |
Machine Language | HP-GL / GP-GL |
Interface | Ethernet port |
Accuracy | Less than 0.1mm |
Available Tools | Vibration knife, pen and holes punching |
Vibration Knife | Electronic, driven by Swiss high frequency motor |
Cutting Features | 1. Cutting by blade, no laser, no damage on leather. 2. Different types of cutting blades are available to work on various materials and meet different cutting requirements. |
Air Pump Power | 18KW |
Machine Working Voltage / Frequency | AC220V±22V / 50Hz±1Hz |
Air Pump Working Voltage / Frequency | AC380V±38V / 50Hz±1Hz |
Why Choose RUIZHOU：
1. Established in 1995, 28 years dedicated to soft material cutting tech.
2. Trusted by over 8,000 famous enterprises in more than 50 different countries and areas; covers over 75% senior custom market in China.
3. Industry leader and technical standards maker in China.
4. CE, ISO9001, 70+ Patents, 20+ software copyright, international PCT invention patent.
5. Quality guarantee, hassle-free post sale service, comprehensive and efficient tech support.
