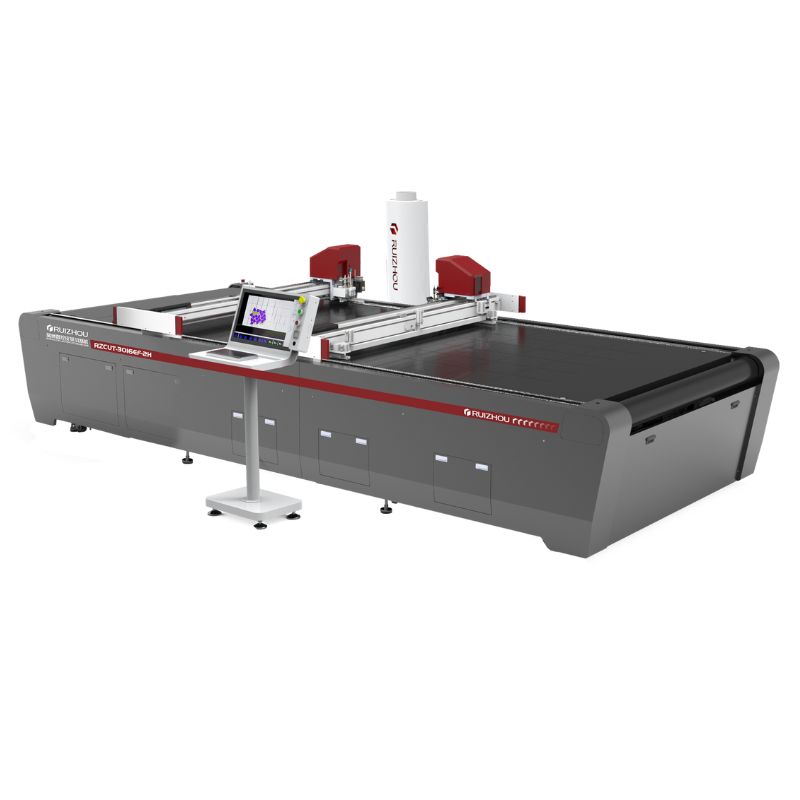

Model | RZCUT5-1510E |
Effective Working Area | (L)1500mm*(W)1000mm |
Machine Dimension | (L)2330mm*(W)1610mm |
Cutting Speed | 100-1200mm/s |
Cutting Thickness | 0.1-6mm |
Processing Material | Genuine leather, synthetic leather,cow leather,sheep leather, pigskin leather,crocodile leather, etc. |
Leather Nesting | Standard manual leather nesting & cutting control system can support live nesting on leather surface, avoiding the defect area. (Can be upgraded to advance automatic nesting system) |
Hold Method | Vacuum absorption |
Machine Language | HP-GL / GP-GL |
Interface | Ethernet port |
Accuracy | Less than 0.1mm |
Available Tools | Vibration knife, pen and holes punching |
Vibration Knife | Electronic, driven by Swiss high frequency motor |
Cutting Features | 1. Cutting by blade, no laser, no damage on leather. 2. Different types of cutting blades are available to work on various materials and meet different cutting requirements. |
Air Pump Power | 7.5KW |
Machine Working Voltage / Frequency | AC220V±22V / 50Hz±1Hz |
Air Pump Working Voltage / Frequency | AC380V±38V / 50Hz±1Hz |
