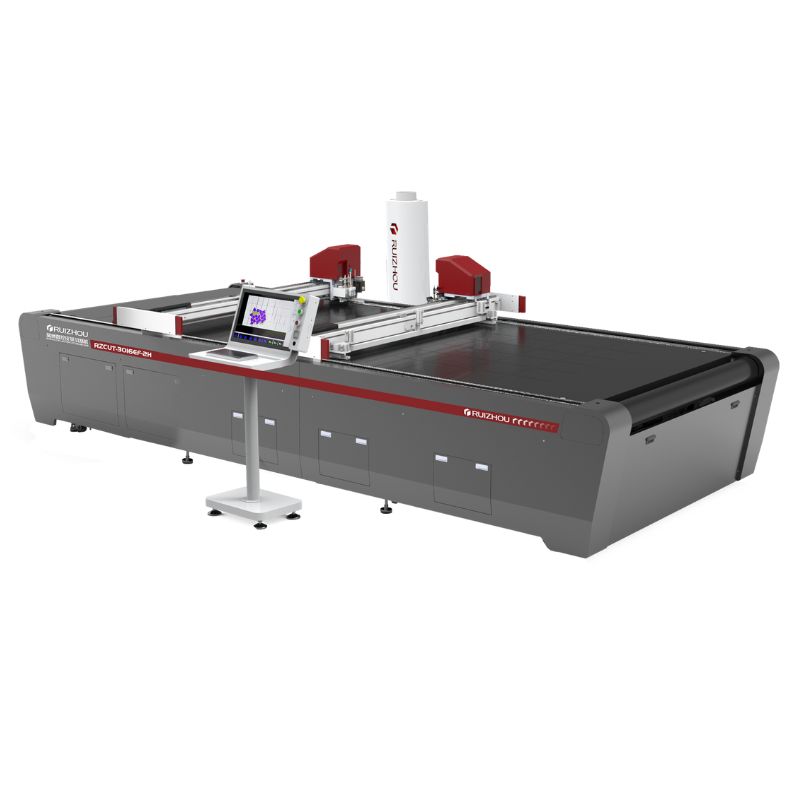

Model | RZCUT5-1607-2H |
Effective Working Area | (L)1600mm*(W)700mm |
Machine Dimension | (L)3140mm*(W)2240mm |
Cutting Speed | 100-1200mm/s |
Cutting Thickness | 0.1-10mm |
Processing Material | PU materials, synthetic materials, artificial leather, counter, mash fabric, footwear trimmings, microfiber leather, etc. |
Nesting | Automatic nesting, improve material utilization |
Hold Method | Vacuum absorption |
Machine Language | HP-GL / GP-GL |
Interface | Ethernet port |
Accuracy | Less than 0.1mm |
Available Tools | Pneumatic Oscillating Tool, Pen and Holes Punching Tool |
Vibration Knife | Electronic, driven by Swiss high frequency motor |
Cutting Features | 1. Cutting by blade, no laser, no damage on leather. 2. Different types of cutting blades are available to work on various materials and meet different cutting requirements. |
Air Pump Power | 9KW |
Machine Working Voltage / Frequency | AC220V±22V / 50Hz±1Hz |
Air Pump Working Voltage / Frequency | AC380V±38V / 50Hz±1Hz |
